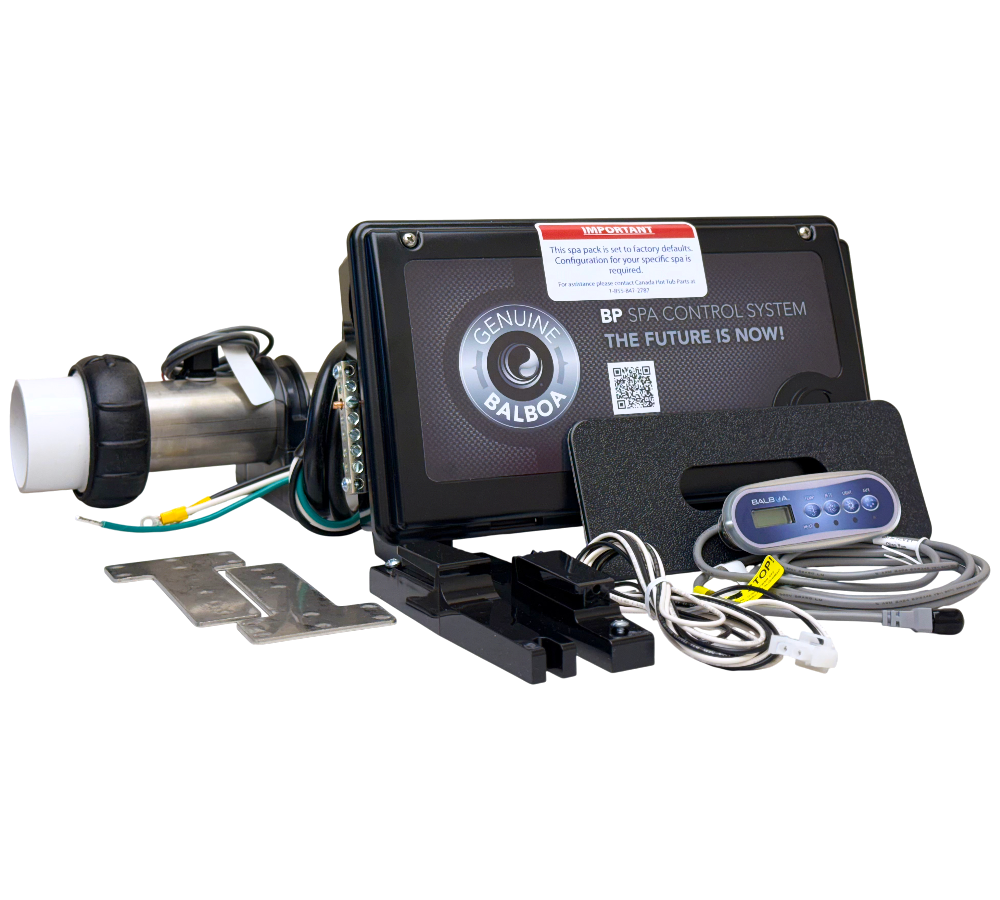

Balboa BP Series Kit: BP100G2, Pump Configuration: Pump 1 - 2sp (*Pump 1 - 1sp when using Circ), Blower: N, Circ: *Y, Oz: Y, Heater: 4.0kW*, Light: 12V, Topside: TP200T

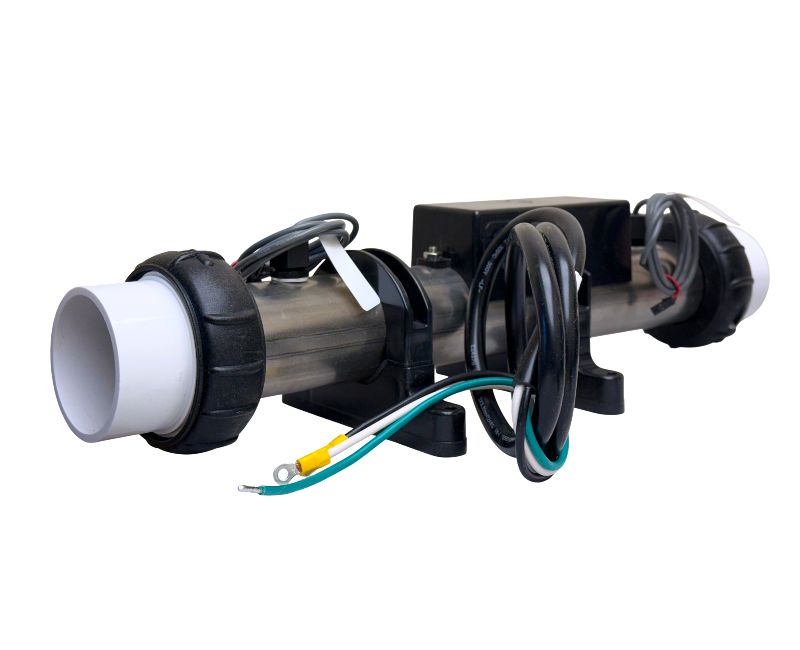

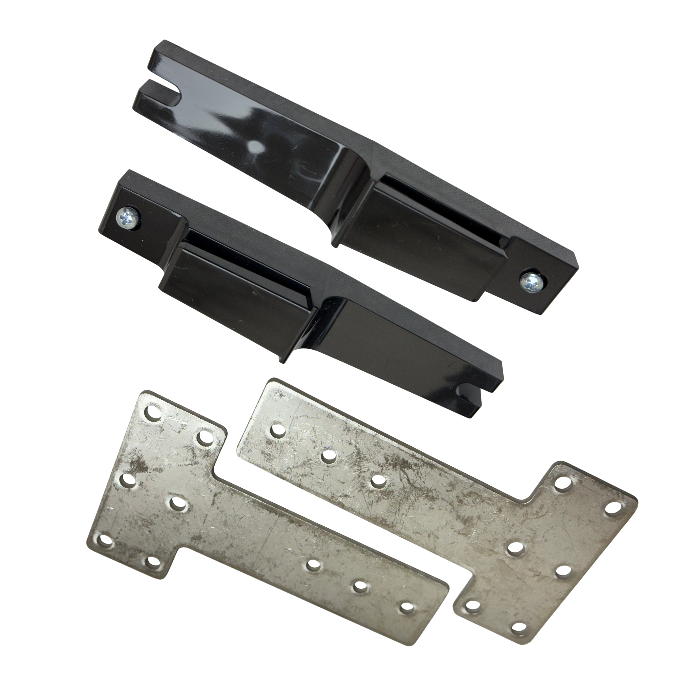

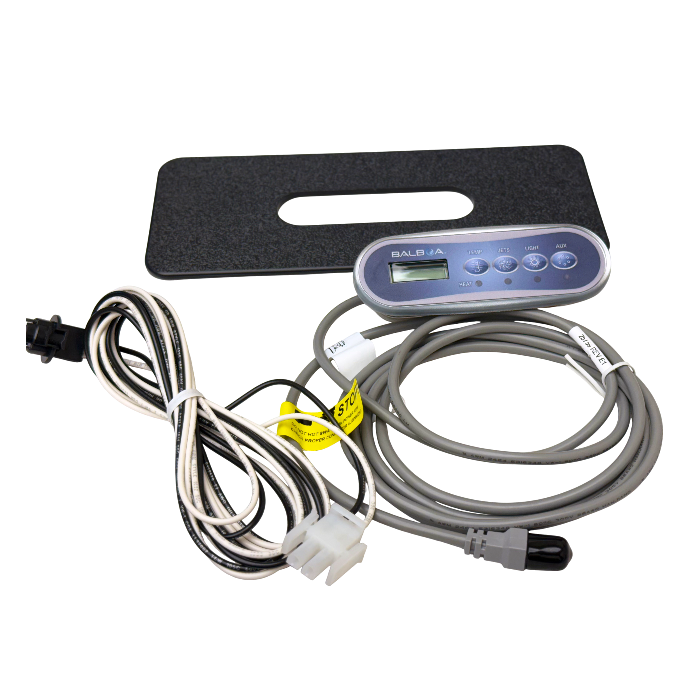

Balboa BP100 Bundle with remote 4.0KW heater and the 4-button TP200 topside control panel is a compact and basic hot tub control system ideal for retrofitting smaller hot tubs with 1 or 2 pumps. It can run on 120 volts for single pump applications (configuration required). Can run: 1 - 2 speed pump 120V or 240V* (Max 12.0 Amps) Ozonator 120V or 240V* Dedicated circulation pump (min 23 GPM and 1-1/2" plumbing ) 120V or 240V(Pump 1 must be single speed for circ pump option) 2nd single speed pump or blower 120V or 240V 12V light Balboa ControlMySpa wifi compatible (Sold Separately) Whats Included: 1 x G4311 BP100G2 Control System 1 x G7413, 4.0KW heater with sensors (15" x 2") 1 x 57282, TP200 Topside control panel. 4.34" (11.02cm) x 1.58" (4.01cm) 1 x 17325, Topside control panel overlay (Heat/Jets/Light/Aux buttons) 1 x 11718, Topside control panel adaptor plate 9" (22.86cm)x 4" (10.16cm) 2 x Tee shaped pack mounting brackets 1 x 25098, Light cord, 8' Important This Balboa BP100 spa pack must be mounted vertically in the spa, if placed horizontally in the spa it may expose the pack to water intrusion and could impact the manufacturers warranty. Product Note.*The Balboa BP100G2 is factory configured for 240 volt applications, pump(s) and ozonator must be 240 volts.Can be configured for 120 volt but pumps and ozonator must all be 120 volts.2nd Pump cord sold separately and not included. Manuals: BP100 Tech manual TP200 Keypad manual
